Compact Substation YBW

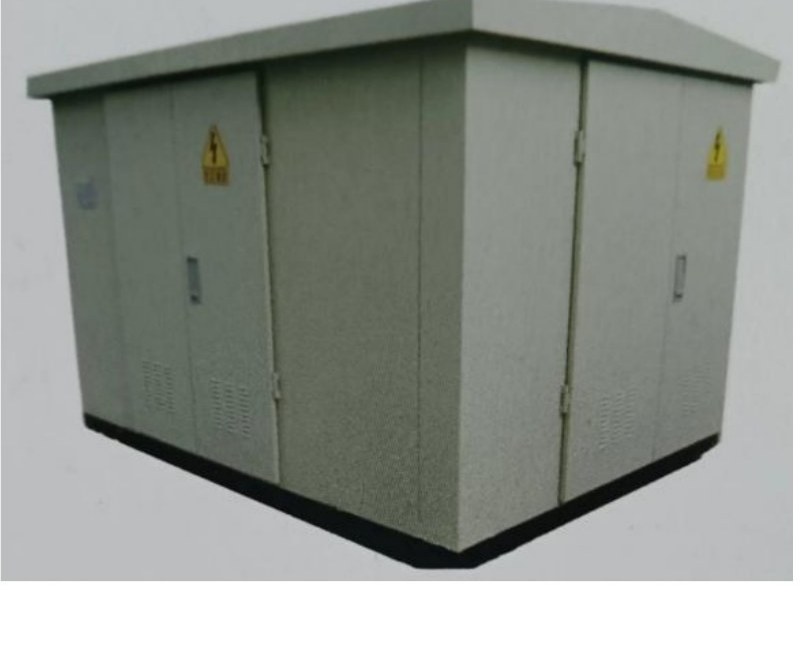

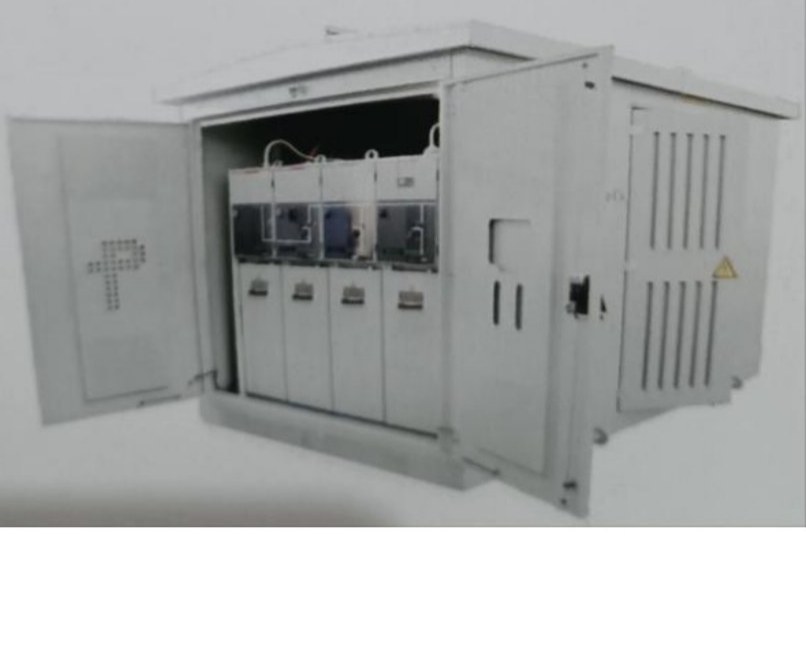

HV compartment, transformer compartment and LV compartment in one enclosure, fully assembled and tested at works; on site it is lifted, connected and energised. 50 to 2500 kVA, HV 12 / 24 / 36 / 40.5 kV.
- Rating50–2500 kVA
- HV10 / 11 / 20 / 22 / 33 / 35 kV
- Highest voltage Um12 / 24 / 36 / 40.5 kV
- LV380 / 400 / 415 / 433 V
- ProtectionIP23 / oil-filled 55 / dry 65
- StandardIEC 60076 / BS 171 / SABS 780
Three things to settle before an outdoor order
Ingress protection (enclosure IP23, oil-filled transformer compartment 55, dry type 65), enclosure material and paint system (state it separately for coastal and high-humidity sites), and cable entry (bottom entry or overhead). SABS 780 and BS 171 differ from IEC on all three, so name the standard you are working to.
Certification
Certification arranged for the destination country
IEC 60076IEEE/ANSI C57SABS 780ISO 9001
| Destination | HV | LV | Frequency | Conformity scheme |
|---|---|---|---|---|
| Southeast Asia | ||||
| Indonesia | 20 kV | 400 V | 50 Hz | — |
| Philippines | 13.2 kV | 240/480 V | 60 Hz | — |
| Vietnam | 22 kV | 380 V | 50 Hz | — |
| Africa | ||||
| Nigeria | 11 / 33 kV | 415 V | 50 Hz | SONCAP |
| Kenya | 11 / 33 kV | 415 V | 50 Hz | PVoC / KEBS |
| Tanzania | 11 / 33 kV | 400 V | 50 Hz | TBS |
| South Africa | 11 / 22 kV | 400 V | 50 Hz | SABS 780 |
| Egypt | 11 / 22 kV | 400 V | 50 Hz | — |
| Ghana | 11 / 33 kV | 400 V | 50 Hz | — |
| Angola | 15 / 30 kV | 380 V | 50 Hz | — |
| Central Asia | ||||
| Kazakhstan | 6 / 10 kV | 380 V | 50 Hz | — |
| Uzbekistan | 6 / 10 kV | 380 V | 50 Hz | — |
| Latin America | ||||
| Chile | 12 / 23 kV | 380 V | 50 Hz | — |
| Mexico | 13.2 / 23 / 34.5 kV | 220Y/127 V | 60 Hz | NOM-002-SEDE/ENER |
| Colombia | 11.4 / 13.2 / 34.5 kV | 208Y/120 V | 60 Hz | RETIE |
| Peru | 10 / 22.9 kV | 380/220 V | 60 Hz | — |
