Pad-Mounted ZGS

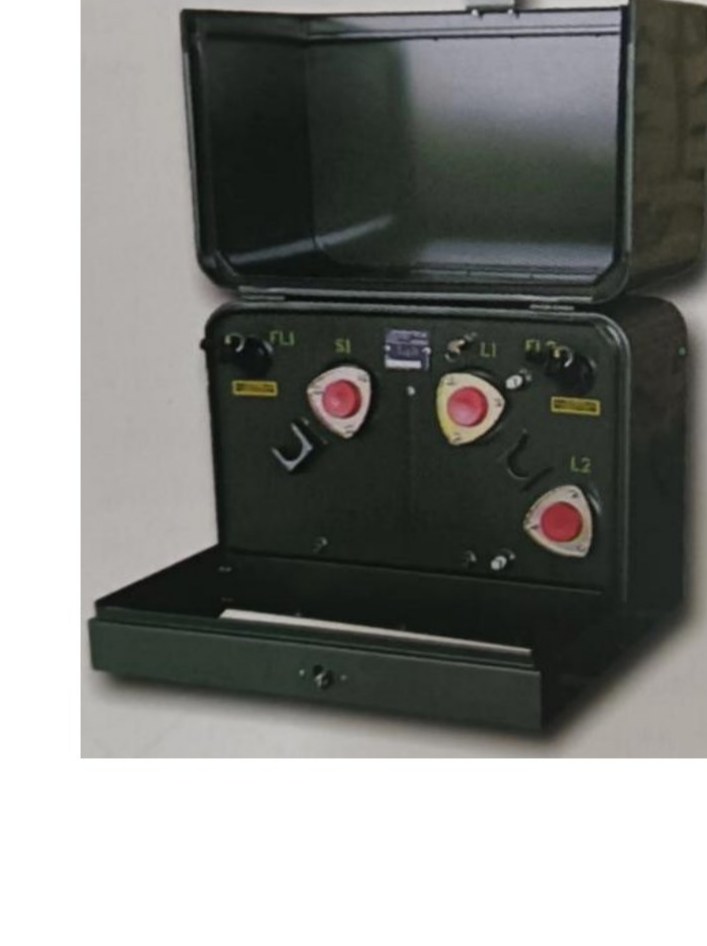

Pad-mounted, fully sealed, dead-front operation. 10 to 250 kVA, HV 13.2 / 15 kV, 60 Hz, designed to IEEE/ANSI C57.12.
- Rating10–3000 kVA
- HV2.4–19.92 kV
- Frequency60 Hz
- DesignDead front
- StandardIEEE/ANSI C57.12
60 Hz is not a 50 Hz unit with a new nameplate
Change the frequency and the core flux density, the turns and the temperature rise all have to be recalculated. With your order state frequency, primary voltage, single or three phase, bushing type (elbow or stud) and fusing arrangement.
Three-phase
kVA ratings
30 · 45 · 75 · 112.5 · 150 · 225 · 300 · 500 · 750 · 1,000 · 1,500 · 2,000 · 2,500 · 3,000 kVA
HV · BIL
- 2,400 V · BIL 60 kV
- 4,160 V · BIL 75 kV
- 4,800 V · BIL 95 kV
- 7,200 V · BIL 95 kV
- 7,620 V · BIL 95 kV
- 7,970 V · BIL 95 kV
- 11,400 V · BIL 125 kV
- 12,000 V · BIL 125 kV
- 13,200 V · BIL 125 kV
- 13,800 V · BIL 125 kV
- 14,400 V · BIL 125 kV
- 19,920 V · BIL 150 kV
LV
- 240Δ/120 tap
- 480Y/277
- 240Δ
- 480Δ
- 600Y/347
Single-phase · dimensions and weight
| Rating kVA | Width mm | Depth mm | Length mm | Weight kg |
|---|---|---|---|---|
| 10.0 | 900 | 840 | 610 | 335 |
| 15.0 | 900 | 840 | 610 | 347 |
| 25.0 | 900 | 840 | 610 | 358 |
| 37.5 | 900 | 840 | 610 | 369 |
| 50.0 | 900 | 840 | 610 | 423 |
| 75.0 | 900 | 940 | 610 | 488 |
| 100.0 | 900 | 940 | 760 | 554 |
| 167.0 | 970 | 1,020 | 760 | 795 |
| 250.0 | 1,000 | 1,020 | 880 | 985 |
Certification
Certification arranged for the destination country
IEC 60076IEEE/ANSI C57SABS 780ISO 9001
| Destination | HV | LV | Frequency | Conformity scheme |
|---|---|---|---|---|
| Southeast Asia | ||||
| Indonesia | 20 kV | 400 V | 50 Hz | — |
| Philippines | 13.2 kV | 240/480 V | 60 Hz | — |
| Vietnam | 22 kV | 380 V | 50 Hz | — |
| Africa | ||||
| Nigeria | 11 / 33 kV | 415 V | 50 Hz | SONCAP |
| Kenya | 11 / 33 kV | 415 V | 50 Hz | PVoC / KEBS |
| Tanzania | 11 / 33 kV | 400 V | 50 Hz | TBS |
| South Africa | 11 / 22 kV | 400 V | 50 Hz | SABS 780 |
| Egypt | 11 / 22 kV | 400 V | 50 Hz | — |
| Ghana | 11 / 33 kV | 400 V | 50 Hz | — |
| Angola | 15 / 30 kV | 380 V | 50 Hz | — |
| Central Asia | ||||
| Kazakhstan | 6 / 10 kV | 380 V | 50 Hz | — |
| Uzbekistan | 6 / 10 kV | 380 V | 50 Hz | — |
| Latin America | ||||
| Chile | 12 / 23 kV | 380 V | 50 Hz | — |
| Mexico | 13.2 / 23 / 34.5 kV | 220Y/127 V | 60 Hz | NOM-002-SEDE/ENER |
| Colombia | 11.4 / 13.2 / 34.5 kV | 208Y/120 V | 60 Hz | RETIE |
| Peru | 10 / 22.9 kV | 380/220 V | 60 Hz | — |
