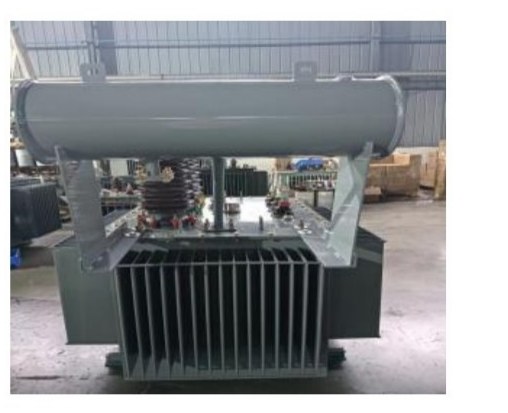

Power Transformer S11 / S13
5,000 to 31,500 kVA, HV 33 / 34.5 / 35 / 38.5 kV, LV 6.3 / 6.6 / 11 / 15 kV, two-winding, with conservator, for substations and industrial parks.
- Rating5000–31500 kVA
- HV33 / 34.5 / 35 / 38.5 kV
- LV6.3 / 6.6 / 11 / 15 kV
- UseSubstations, industrial parks
What to discuss above 2500 kVA
Impedance voltage, short-circuit withstand, temperature-rise limits and shipping dimensions. Radiators and bushings can be removed and crated separately when the assembled unit is out of gauge. Send the system short-circuit capacity and a typical load profile; impedance is set by the parallel-operation requirement.
S11
HV 33 / 34.5 / 35 / 38.5 kV · LV 6.3 / 6.6 / 11 / 15 kV · Vector group Yd11 / YNd11 / Dyn11 / YNyn0
| Rating kVA | No-load loss kW | Load loss kW | No-load current % | Oil weight kg | Total weight kg | Dimensions mm L×W×H |
|---|---|---|---|---|---|---|
| 5,000 | 4.32 | 31.38 | 0.48 | 2,200 | 11,000 | 3050×2500×3050 |
| 6,300 | 5.25 | 35.06 | 0.48 | 2,700 | 13,000 | 3100×2760×3100 |
| 8,000 | 7.20 | 38.48 | 0.42 | 3,200 | 15,700 | 3350×3050×3250 |
| 10,000 | 8.70 | 45.32 | 0.42 | 3,500 | 18,000 | 3450×3300×3350 |
| 12,500 | 10.80 | 53.87 | 0.40 | 3,900 | 20,800 | 3600×3500×3400 |
| 16,000 | 12.16 | 65.84 | 0.40 | 4,400 | 24,500 | 3800×3600×3650 |
| 20,000 | 14.40 | 79.52 | 0.40 | 4,300 | 30,000 | 4000×3850×3850 |
| 25,000 | 17.02 | 94.05 | 0.32 | 6,500 | 36,300 | 4200×4000×4000 |
| 31,500 | 20.22 | 112.86 | 0.32 | 8,000 | 44,000 | 4350×4150×4200 |
Certification
Certification arranged for the destination country
IEC 60076IEEE/ANSI C57SABS 780ISO 9001
| Destination | HV | LV | Frequency | Conformity scheme |
|---|---|---|---|---|
| Southeast Asia | ||||
| Indonesia | 20 kV | 400 V | 50 Hz | — |
| Philippines | 13.2 kV | 240/480 V | 60 Hz | — |
| Vietnam | 22 kV | 380 V | 50 Hz | — |
| Africa | ||||
| Nigeria | 11 / 33 kV | 415 V | 50 Hz | SONCAP |
| Kenya | 11 / 33 kV | 415 V | 50 Hz | PVoC / KEBS |
| Tanzania | 11 / 33 kV | 400 V | 50 Hz | TBS |
| South Africa | 11 / 22 kV | 400 V | 50 Hz | SABS 780 |
| Egypt | 11 / 22 kV | 400 V | 50 Hz | — |
| Ghana | 11 / 33 kV | 400 V | 50 Hz | — |
| Angola | 15 / 30 kV | 380 V | 50 Hz | — |
| Central Asia | ||||
| Kazakhstan | 6 / 10 kV | 380 V | 50 Hz | — |
| Uzbekistan | 6 / 10 kV | 380 V | 50 Hz | — |
| Latin America | ||||
| Chile | 12 / 23 kV | 380 V | 50 Hz | — |
| Mexico | 13.2 / 23 / 34.5 kV | 220Y/127 V | 60 Hz | NOM-002-SEDE/ENER |
| Colombia | 11.4 / 13.2 / 34.5 kV | 208Y/120 V | 60 Hz | RETIE |
| Peru | 10 / 22.9 kV | 380/220 V | 60 Hz | — |
